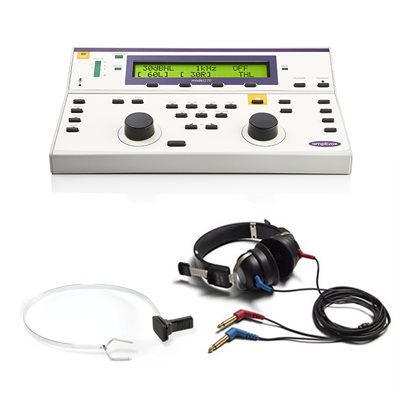

Amplivox Model 270 Diagnostic Audiometer with Advanced Functionality

Product Code: AMPLIVOX270

  • Diagnostic audiometer with air, bone and speech capabilities
    • Air conduction
      • frequency range: 125 Hz to 8000 Hz
      • attenuation levels: -10 dBHL to 120 dBHL (step size 5 dB, 2.5 dB)
      • packaged with calibrated DD45 audiometric headphones
      • includes patient response button
      • talk forward function
      • talk-balk function (note: talk-back microphone NOTE included)
        • Patient response button included
      • manual testing capabilities only
    • Bone conduction
      • frequency range: 250 Hz to 8000 Hz
      • attentuation levels: -10 dBHL to 70 dBHL
      • packaged with calibrated B71 BC vibrator
      • manual testing capabilities only
    • Speech audiometry
      • Monitored-live voice capabilities
      • Recorded speech material capable via external CD player (not included) or other sound source to the LINE IN socket
    • Special test features
      • Stenger Test (tone or speech)
      • ABLB Test
      • SISI Test
  • Powered by mains AC/DC adapter (included) that plugs into standard wall outlet
  • Internal memory allows to store up to 12 audiograms
  • Amplivox ampliSuite software (included) allows data to be transferred to a computer (to view, annotate, and/or print); requires designated USB cable (not included)
  • Noah compatible
  • Includes soft carrying case
  • Three year warranty
Other available options:
  • Model with fewer push buttons:  item# Amplivox270+
  • Talk-back microphone: item# 8518110
  • Optional thermal printer: item# 8503007
  • Insert earphones: IP30 insert earphones can be substituted for DD45 headphone when requested at the time of equipment order
NOTE:  Special order item will incur additional lead time

  • (1) Model 270 Audiometer
  • (1) set of DD45 standard audiometric headphones
    • IP30 insert earphones can be substituted for no additional charge at time of initial order
    • To order IP30 inserts in addition to DD45 headphone, add item# 8101884 to order
  • (1) B71 bone vibrator headset
  • (1) patient response switch
  • (1) mains adaptor (power supply designed for continuous operation)
  • (50) audiogram cards
  • (1) NOAH Audilink software
  • (1) operating manual & ampliSuite
  • (1) carrying case
  • (1) calibration certificate
  • Sanibel MPT-II Thermal Printer (item #8503007)
  • Printer Cable for 270, 270+, 270+B (item #8505753)
  • Printer Paper for MPT-II, each (item #ITA-8029305)
  • Patient Response Button (item #8011155 )
  • Microphone and Monitor Headset (item #8010870)

General Specs

  • 3.4 lbs
  • Dimensions: 14" L x 9.1" w X 3.94" H)

Things to Know Before you Buy

Amplivox requires a code for calibration

Amplivox requires a code for calibration for technicians to gain access to perform calibration.  While these are calibrated when sold through Oaktree Products, the code is not made available to Oaktree Products at the time of sale. When the time comes for the annual calibration, a code is required to initiate the process.  If you are in need of a code, Oaktree Products is more than happy to work on your behalf.   Contact Oaktree Products with the serial number of your Amplivox unit; we will contact Amplivox, obtain the necessary calibration code, and forward the information directly to you. The calibration code should be valid for the lifetime of the device.
