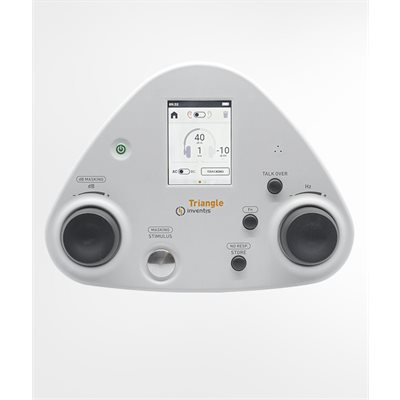

Inventis Triangle Screening Audiometer with DD65 Headphones

Product Code: 11689-DD65

  • Portable, rechargeable screening audiometer with air conduction capabilities only
    • frequency range: 125 Hz to 8000 Hz
    • attenuation levels: -10 dBHL to 100 dBHL (step size 5 dB)
    • packaged with calibrated DD65 (circumaural) audiometric headphones
    • includes patient response button
    • built-in talk forward microphone (operator's voice routed from microphone on audiometer to patient headphones when TALKOVER button pressed and held down)
    • manual and automatic testing capabilities
  • Powered by rechargeable Li-Ion battery (included; fitted inside unit)
  • Maestro software allows data to be transferred to a computer (to view, annotate, and/or print) with standard USB cable (included)
  • internal memory stores up to 100 patient tests
  • Noah compatible
  • Includes soft carrying case
  • Two year warranty
Other available options:
  • Model pre-packaged with supra-aural headphones (DD45): item# 11689
  • Model with both air and bone conduction capabilities with circumaural (DD65) headphones: item# TRIANGLE-DIAG-DD65
  • Model with both air and bone conduction capabilities with supra-aural (DD45) headphones: item# TRIANGLE-DIAG
NOTE:  Special order item will incur additional lead time

  • (1) Inventis Triangle portable audiometer (lithium-battery included)
  • (1) set of DD65 standard audiometric headphones
  • (1) patient response button
  • (1) USB charging cable
  • (1) USB multi-socket power adapter
  • (50) audiogram screening cards
  • (1) carrying case
  • (1) conformity and calibration certificates
  • Computer-Connectivity License (item# 11691)
  • Bone Conduction License - without Transducer (item# 11692)
  • Bone Conduction License - with Pre-Calibrated B-71 Bone Vibrator (item# 11693)
  • IP30 Insert Earphones for Inventis Equipment (item# 11748)

What is the difference between DD45, DD65 and DD450 headphones?

The DD45 is a supra-aural headphone designed to rest on the ear and does not completely fit over the ear. This headphone allows providers to obtain hearing test results at 250 Hz through 8000 Hz.

Both the DD65 and DD450 are circumaural headphones designed to completely encase or surround the ear, sealing the ear off from the environment. The circumaural design provides additional attenuation to significantly improve outcome and accuracy of hearing tests, making the DD65 and DD450 ideal for boothless audiometry (i.e., testing hearing outside of an audiometric booth).

While the DD65 and DD450 may be used for boothless audiology and look very similar, they are different. The DD65 headphone is a DD45 headphone inserted a DD450 encasement; like the DD45, the DD65 allows providers to obtain hearing test results at 250 Hz through 8000 Hz.  In contrast, the DD450 headphone allows providers to obtain hearing test results at 250 Hz through 16000 Hz. The DD450 headphone (or comparable headphone) is specifically designed to extended frequency audiometry.
